OVERVIEW

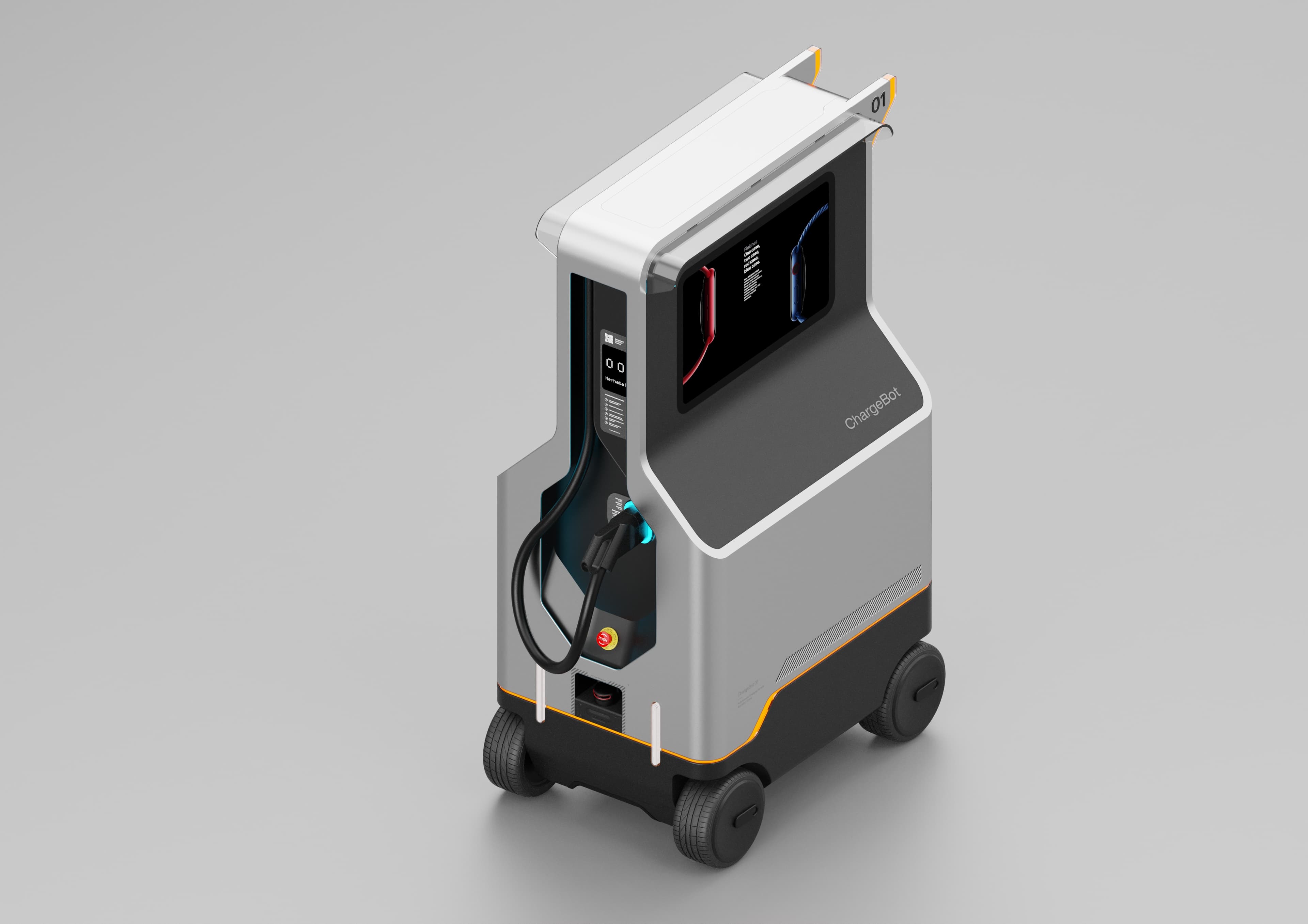

ChargeBot CB-1
Autonomous Mobile Charging Station
CB-1 is an autonomous mobile DC charging station with an onboard LFP battery. It travels to the vehicle within a defined operating area, allowing businesses to serve different parking locations.
Highlights
Autonomous navigation
Autonomous movement within a defined operating area
DC fast charging
Electric vehicles and compatible site equipment
LFP battery
LFP cell technology for intensive use
Battery-buffered operation
Dock charging from grid and compatible solar inputs
Autonomous navigation and mobility
CB-1 uses LiDAR and cameras to sense its surroundings, with mapping to determine its position and route. It travels to the vehicle within a defined operating area and returns to its dock after the task. An operator can take over remotely. Vehicle connection and task sequences are defined for each application.
Touch interface and remote management

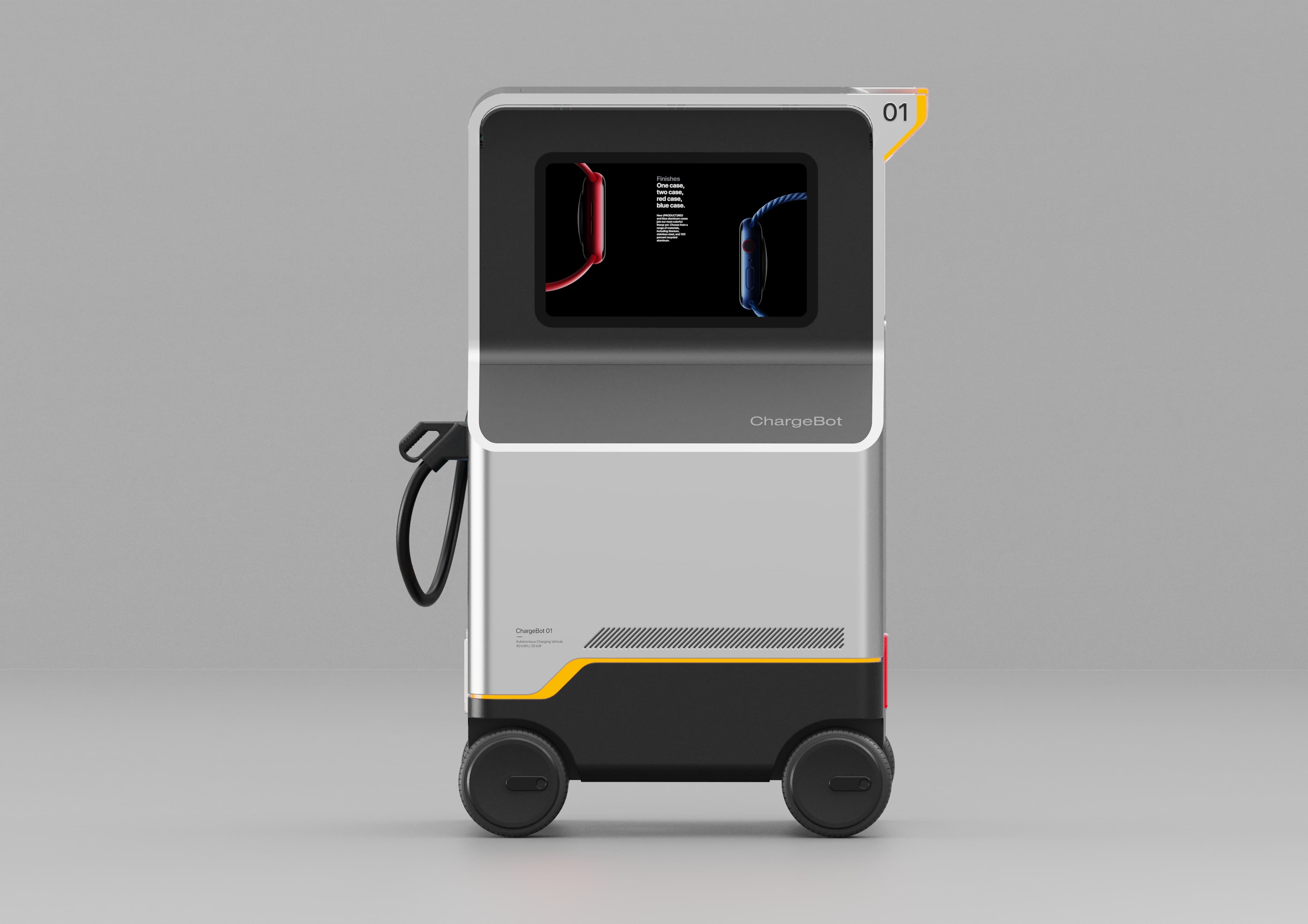

Charging sessions start from the touch control screen, with status information visible on the two side displays. These screens can also show site directions or corporate content. Central management, remote monitoring and payment options are configured with the software and services selected for the project.
Charging power and connection
CB-1 provides DC charging through CCS2. Custom DC terminal options can be assessed for ground support vehicles and other site equipment. Vehicle compatibility, cable length and connection arrangements are defined during project planning.
Battery, safety and durability
The onboard LFP battery stores energy for charging. A battery management system monitors temperature and current, supported by thermal management and electrical protection. The battery recharges through the dock using a suitable grid connection or compatible solar input.
Technical data
Electrical
- Output power
- 40 / 80 kW DC
- Output voltage
- 30 – 1000 V DC
- Dock input
- 230 V single-phase / 3×400 V three-phase / solar DC
- Frequency
- 50/60 Hz ±5%
- Efficiency
- Up to 97%
- Power factor
- 0.99
- THDi
- ≤ 5%
- Connector
- CCS2 · CHAdeMO and custom DC terminal optional
- Cable
- 5 – 7 m
Battery
- Type
- LFP (LiFePO₄)
- Capacity
- 40 / 80 kWh
- Lifespan
- ≥ 8,000 cycles / 8–10 years
- Charging time
- 1 – 4 hours
- Charging curve
- Pre-check → Constant current → Constant voltage → Stop
Physical and ambient
- Dimensions
- 2100 × 1300 × 900 mm
- Weight
- 1300 kg
- Protection class
- IP54 / IK10
- Noise
- < 65 dB (1 m)
- Operating temperature
- −10 … +50 °C
- Storage
- −20 … +50 °C
- Humidity
- up to 95% (non-condensing)
Autonomy and interface
- Autonomy level
- Level 4 — full autonomy within a defined site
- Perception
- Dual LiDAR + camera, SLAM
- Operating range
- 100 – 300 m around dock
- Daily route
- up to 5 km
- Inclination
- up to 8%
- Control
- Autonomous + remote manual
- Display
- 7" touch control + 2 × 32" information screens
- Status indicator
- RGB LED strip
- Connectivity
- OCPP 1.6J / 2.0.1 · GSM / LAN / WLAN · MQTT, SNMP
- Payment
- RFID, NFC, QR code
Standards
- CE
- IEC 61851
- IEC 62196
- IEC 61439
- IEC 61000 (EMC)
- ISO 15118
- ISO 26262
- ISO 9001 / 14001 / 45001
Service and maintenance
- Service planning by site and region
- Remote diagnostics and firmware updates
- Modular construction for maintenance and replacement
- Response times defined in the service agreement
Plan your CB-1 application
Share your vehicle numbers, parking layout and daily charging needs so we can assess the configuration and dock location.
